FLATBEDS

Steel Flatbed.JPG

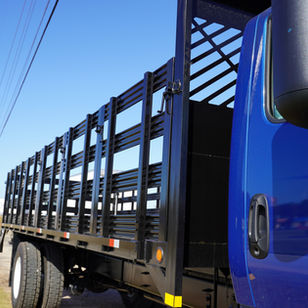

 24ft Flatbed with Stake Sides

Pictured above is our standard steel flatbed with removable stake sides. This unit has a 3/16" steel treadplate floor on 3" Steel I-beam crossmembers with 5" Channel long sills. Our bulkhead is built to cover the entire cab of the chassis, but provides plenty of visibility out of the rear glass. This unit comes complete with 4" winch straps on sliding tracks. We have also equipped this unit with an Anthony AST-25 Plus (2500lb capacity) liftgate. (REF# 55747)

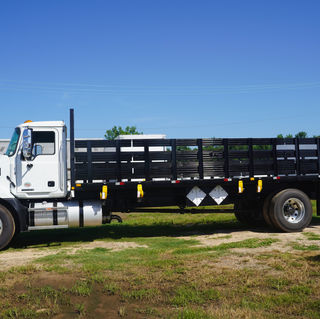

 26ft Flatbed with Aluminum Flooring and Stake Sides

Pictured above is a 26ft flatbed with and extruded aluminum floor and removable steel stake sides. This is the same 1-1/8" thickness extruded aluminum flooring we use inside of some of our van bodies. The aluminum is a very durable product and provides a textured substrate. We still use 3" Steel I-beam crossmembers to construct the framework. The long sills differ depending on the end users application. In this build we used 8" Steel Channel for the long sills. Our bulkhead is built to cover the entire cab of the chassis, but provides plenty of visibility out of the rear glass. This unit comes complete with 4" winch straps on sliding tracks. We have also equipped this unit with safety placards and a toolbox per the end users request. (REF# 56151)

14ft Dump Bed

In these photos we have one of our more specialty builds. This 14ft flatbed is equipped with permanent steel sides made specifically for carrying/dumping debris. The body is constructed with 5" Channel Longitudinals, 3" I-Beam crossmembers, and 3/16" smooth steel on the floor. The exterior walls are also composed of 3/16" smooth steel, with tubing supports evenly spaced around the perimeter. Perhaps the main selling point on this particular build lies within the Venco VC520ED Hoist complete with power up and power down. This hydraulic lift hoist is capable of lifting 16,000 + lbs. The truck also comes with expanded metal under body baskets, pintle hitch, back up camera, and side door access. (REF # 55978)

Check out our videos!

Options

Every option on our flatbeds are built to your specifications. Popular add on options include:

  • Control straps - fixed & sliding

  • Receiver hitch

  • Goose neck attachments

  • Side steps

  • D rings

  • 10 Ga. solid steel sides

  • Underbody toolbox(s)

  • Work lights

  • Back up camera

  • Liftgates

  • Stake Sides

  • Forklift Mount Kits
